INA333AIDRGR
Manufacturer:
Texas Instruments
Mfr.Part #:
INA333AIDRGR
Datasheet:
Description:

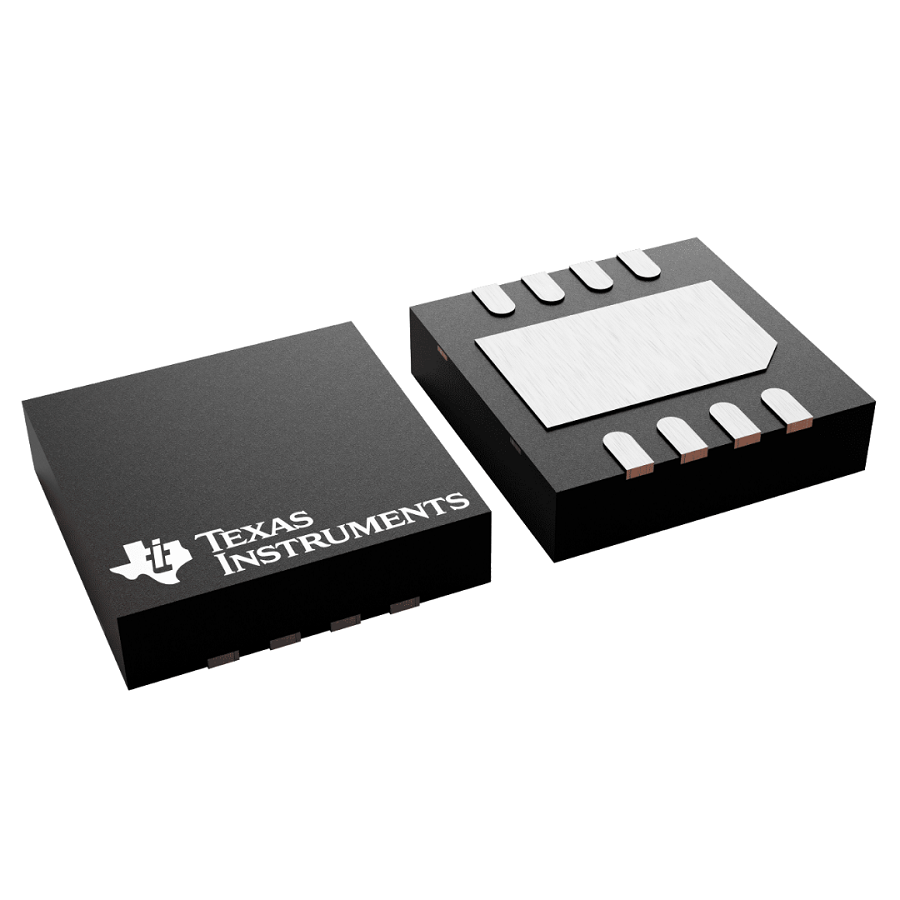

Amplifiers - Op Amps, Buffer, Instrumentation SON-8 SMD/SMT Instrumentation Amplifiers Number of Circuits:1
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 3 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Resistance | 100 GΩ |
| Height | 800 µm |
| Packaging | Reel |
| Thickness | 730 µm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 3 |
| Number of Circuits | 1 |
| Operating Supply Voltage | 5 V |
| Lifecycle Status | Active |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.8 V |
| Number of Channels | 1 |
| Slew Rate | 160 mV/µs |
| Common Mode Rejection Ratio (CMRR) | 100 dB |
| Operating Supply Current | 50 µA |
| -3db Bandwidth | 150 kHz |
| Input Bias Current | 200 pA |
| Quiescent Current | 50 µA |
| Output Current per Channel | 40 mA |
| Input Offset Voltage (Vos) | 25 µV |
| Max Dual Supply Voltage | 2.75 V |
| Min Dual Supply Voltage | 900 mV |
| Amplifier Type | Instrumentation Amplifiers |
Stock: 1970
Distributors
pcbx
pcbxUnit Price$2.84093
Ext.Price$2.84093
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.84093 | $2.84093 |
| 10 | $2.15870 | $21.58700 |
| 25 | $1.99027 | $49.75675 |
| 50 | $1.89076 | $94.53800 |
| 100 | $1.79620 | $179.62000 |
| 300 | $1.72244 | $516.73200 |
| 500 | $1.65173 | $825.86500 |
| 1000 | $1.60813 | $1608.13000 |
| 3000 | $1.56452 | $4693.56000 |
